In the rapidly transforming landscape of retail, transportation, and smart corporate environments, static displays no longer suffice. Today's commercial spaces demand highly interactive, resilient, and intelligent systems. As a leading solution in modern interactive advertising, premium Capacitive Touch Digital Signage offers unparalleled touch responsiveness, visual clarity, and analytical depth for 2026 commercial standards.
For US-based system integrators, design consultants, and retail operators, selecting digital hardware is no longer just about bezel size or brightness. In 2026, premium buyer criteria have shifted to edge-processing reliability, environmental resilience, and deep privacy compliance. The modern kiosk machine designed by Shenzhen Cuhub® factory merges high-fidelity displays with smart, localized processing, ensuring that every touch counts while preserving critical operation costs.
One of the standout breakthroughs featured in our latest product line is the implementation of the OptiTouch-Sync Intelligent Control Protocol. Developed directly by Shenzhen Cuhub® engineers, this proprietary system leverages deep firmware-level optimization that bypasses generic USB HID driver lag. By processing raw capacitive sensor electrostatic maps right at the controller boundary, the OptiTouch-Sync Intelligent Control Protocol achieves a sub-8ms touch response cycle, making gestures like swiping, zooming, and dynamic interactive mapping fluid and instantaneous.
Furthermore, the protocol dynamically adjusts key scanning frequencies to compensate for high electromagnetic interference (EMI) typical in bustling commercial centers, rendering it highly dependable for environments running multi-device networks.
Choosing the right hardware tier is essential for long-term ROI. Below is a comparative look at standard off-the-shelf capacitive displays versus the advanced, Edge-AI integrated systems engineered by Shenzhen Cuhub® factory.
| Specification/Feature | Standard PCAP Signage | Edge-AI Enabled Cuhub® Signage |
|---|---|---|
| Touch Control Protocol | Standard USB HID | OptiTouch-Sync Intelligent Control Protocol |
| Response Latency | 15ms - 25ms | < 8ms |
| Waterproof Level | Basic IP54 Face | IP65/IP67/IP68 Bezel-Sealed Options |
| Local Demographic Tracking | Requires Cloud API (High Latency) | Edge-AI Micro-sensor (Local processing, zero-lag) |
| Energy Efficiency Index | Standard Energy Star | Energy Star 9.0 Compliant (Save up to 35%) |
Every commercial development features unique regional power setups. Our Capacitive Touch Advertising Digital Signage units are built to adapt. They natively support an auto-switching universal voltage module (100V - 240V AC, 50/60 Hz) to eliminate the need for expensive step-down transformers. Optimized for 24/7 continuous operation, they integrate eco-mode backlighting schedules that reduce peak current draw during non-business hours, allowing easy compliance with the latest regional US green building initiatives.
Deploying interactive hardware in busy public venues requires methodical mechanical and electrical handling. Follow this strict guide to ensure professional installation.
Begin by verifying your mounting surface. All Shenzhen Cuhub® panels feature structural reinforce-plates conforming to standard VESA configurations (e.g., 400x400mm or 600x400mm). Under the Americans with Disabilities Act (ADA), the maximum high forward reach for interactive objects should be no higher than 48 inches (1220 mm) from the finished floor, and the maximum low reach should not be below 15 inches (380 mm) to guarantee clean access for all users.
Using heavy-duty steel VESA mounts rated for commercial display loads, secure the screen to structural wall studs or reinforced kiosk steel frames. Ensure all dynamic data cables (Shielded Cat6/Cat7 for media extension, plus the critical USB signal link for touch operations) are routed through dedicated isolation channels away from main AC lines to completely eliminate touch signal interference.
Position the integrated micro-camera or depth sensor at the top bezel. Connect the internal jumper to the hardware-level Edge-AI board. To remain fully compliant with US state laws like CCPA, verify inside the configuration system that "Local Processing Only" is selected. This guarantees that user images are converted to vector numbers instantaneously on-device and never stored as raw media files.

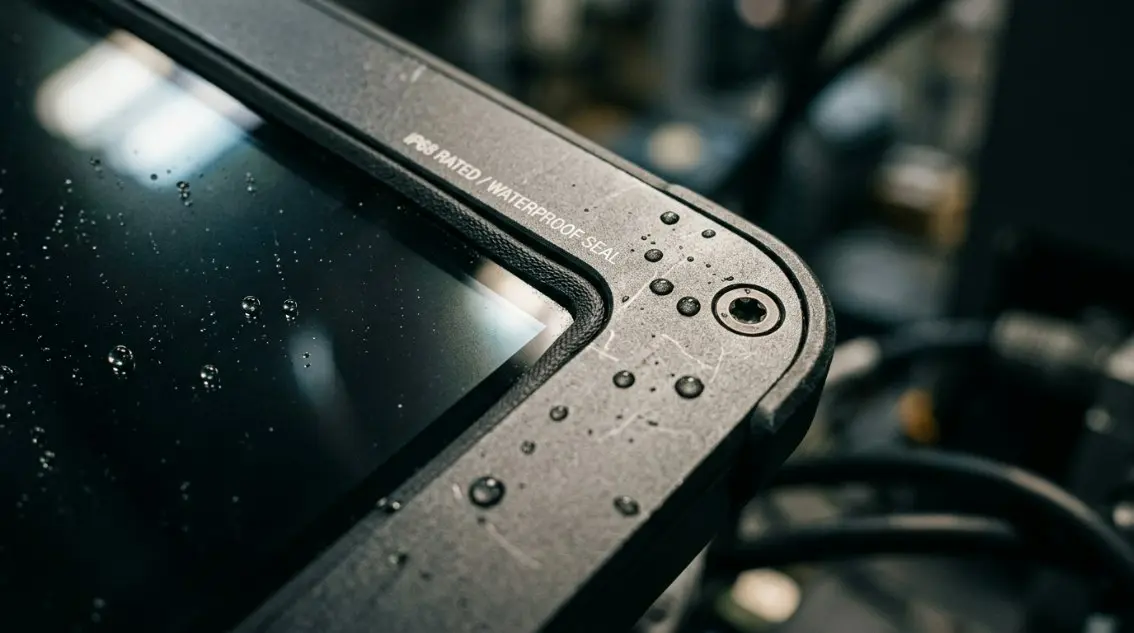

For semi-outdoor, transit shelter, or restaurant drive-thru deployments, apply our specialized silicone-rubber bezel gasket. Check the pressure points around the edge of the display, making sure that the sealing ring is compressed uniformly. For critical water protection, apply a non-corrosive, neutral-cure silicone sealant along the outer bezel seam to guarantee the IP67/IP68 rating remains intact under wet operating conditions.
When installing multiple Capacitive Touch Digital Signage panels in a cluster, calculating the correct AC circuit sizing is paramount to avoid tripping circuit breakers.
To design an electrical line layout, utilize our engineering-approved sizing formula below:
Total Wattage (P_total) = [ N * (P_display + P_player) ] * S_factor Where: - N = Number of displays daisy-chained on a single circuit branch. - P_display= Maximum rated display power (typically 85W for standard 55" panels). - P_player = Local computer/media box consumption (typically 20W). - S_factor = Continuous Load Overhead Safety Factor (1.25 as per National Electrical Code requirements for over 3 hours runtime). Practical Example calculation for 4 display panels: P_total = [ 4 * (85W + 20W) ] * 1.25 P_total = [ 4 * 105W ] * 1.25 = 525 Watts continuous draw. To compute the necessary current capacity (Amperes) for a standard US 120V line: Amperage (I) = P_total / Line Voltage = 525W / 120V = 4.375 Amps. This design easily and safely fits within a standard US 15-Amp or 20-Amp commercial circuit breaker line.
Deploying interactive hardware in public centers and retail stores demands complete adherence to high safety and emission rules. Our hardware is engineered with comprehensive certifications to speed up your municipal permitting approvals:
Yes. Every advanced kiosk machine produced by Shenzhen Cuhub® factory can be configured with an optional Smart IoT Bridge. This allows seamless integration into professional smart ecosystems via Matter protocols. Network administrators can issue commands using Amazon Alexa or Apple HomeKit environments for tasks such as automated remote power cycling, backlight dimming, and remote monitoring of system health.
For custom metal enclosures, we recommend maintaining a minimal physical cutting clearance tolerance of +/- 0.5 mm around the touch active glass area. To account for normal thermal expansion of materials under heavy usage, keep a structural air gap of at least 2.5 mm between the active touch surface and the external protective metal bezel frame.
To preserve certifications, all power inputs must run through the provided, factory-certified grounded power cord. Installers must avoid modifying internal electronic control boards or altering shielding materials. Any external enclosures must also maintain adequate ventilation openings to prevent heat buildup, as specified by standard UL thermal dispersion profiles.
As a top-tier professional manufacturer, we deliver direct factory-price solutions for dynamic scaling, engineering projects, and custom systems globally.
